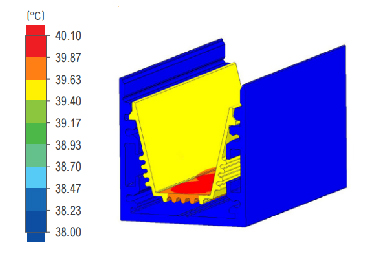

Temperature (solid) (°C)
exterior view 1 : contour line
Temperature ambient:25°C
LED strip:D8280-24V-12mm(14.4W/m)

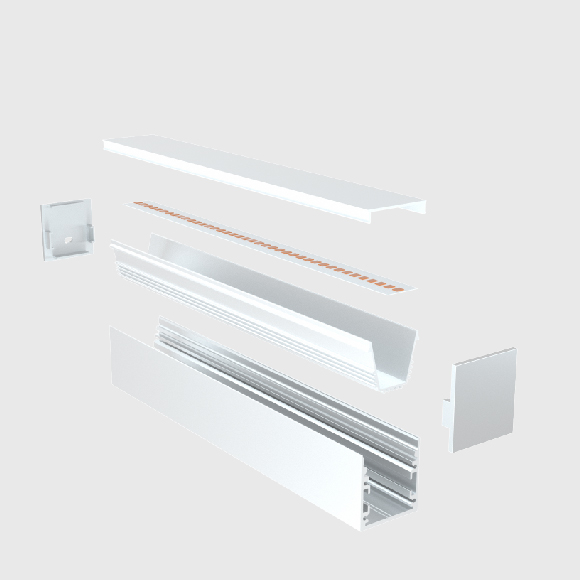

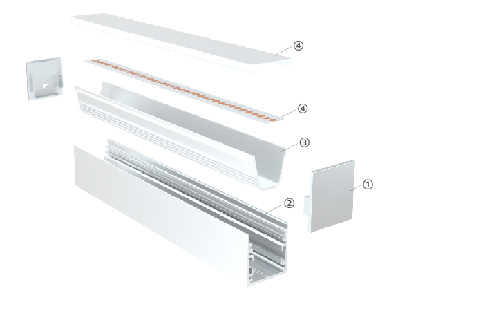

Information
-
①End cap
-
② Profile
-
③ Aluminium Sheet
-
④ Lighting source
-
⑤ Cover
Heated structure
Downloads
Catalogue pageProducts
Order Guide
| COVER | Trans/Opal/Diffuser | 3030E2/3030E3/3030E4 |  |
| COVER | Black | 3030EB |  |
END CAP | Hole/W O hole | 32308/32309 |    |
CONNECTOR | LSXXXXSPJX | X 30°≤∠A≤150° |  |
CONNECTOR | LSXXXXSPJY | T 30°≤∠B≤ 150° |  |
CONNECTOR | LSXXXXSPJLC |
L 30°≤∠C≤ 330° |  |
CONNECTOR | LSXXXXSPJLD |
L(vertical） 30°≤∠C≤ 330° |  |
CONNECTOR | LSXXXXSPSJ |
120°splicing strip |  |
CONNECTOR | LSXXXXSPJLA |
60°splicing strip(vertical） |  |
CONNECTOR | LSXXXXSPJLB | 120°splicing strip(vertical） |  |
CONNECTOR | LSXXXXSPJT | 180°splicing strip |  |
CONNECTOR | LSXXXXSPJLA | 90°splicing strip(vertical） |  |
CONNECTOR | LSXXXXSPJLB | 90°splicing strip |  |

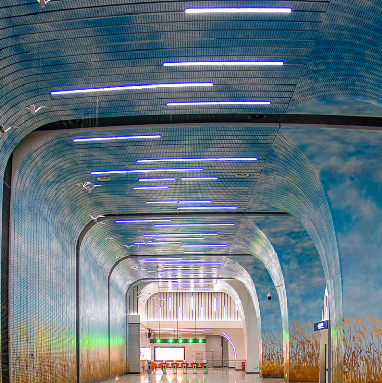

Application effect1
