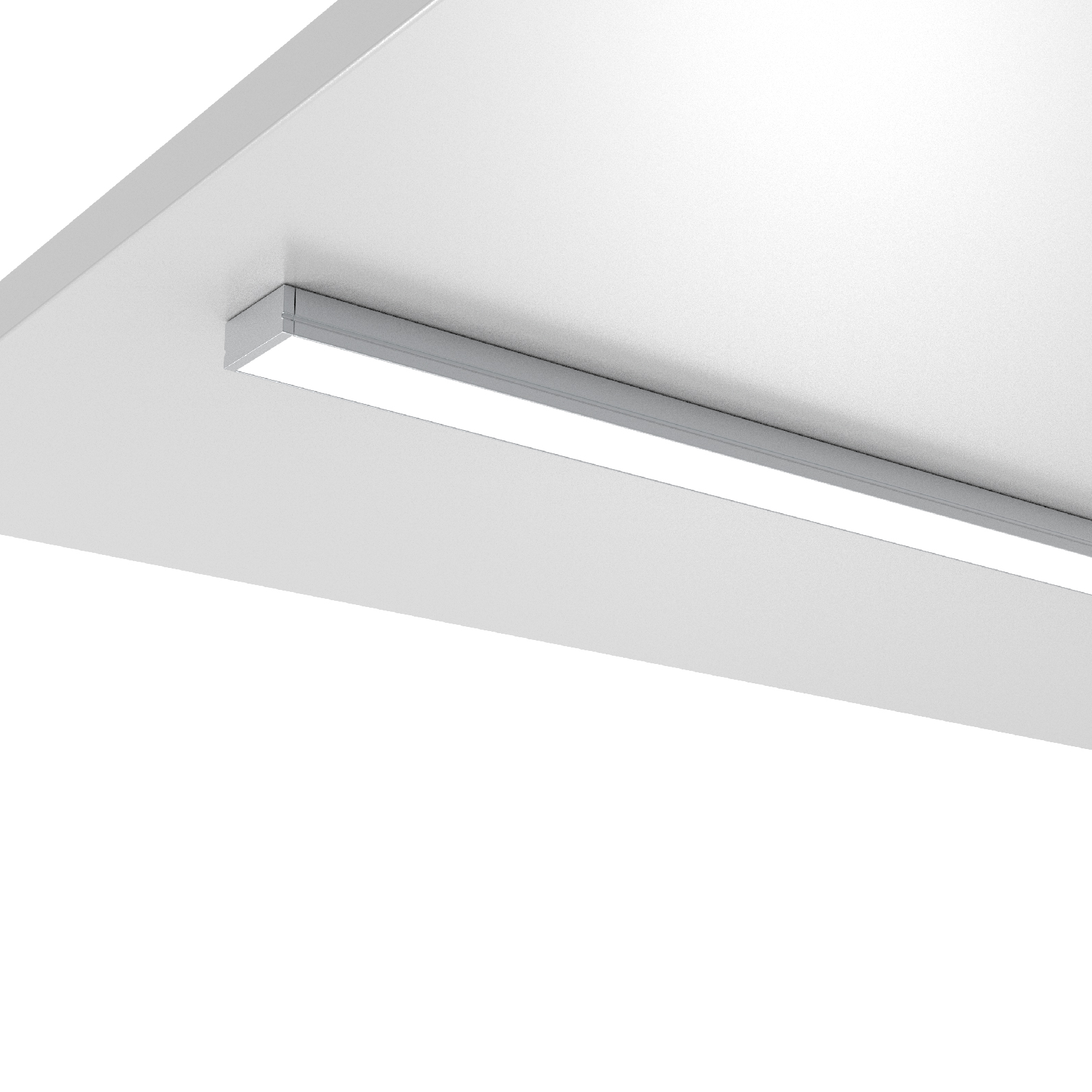

The series of magnetic products constitutes a small size, light weight and magnetic property. It's so flexible that it can be spliced at will, which can effectively avoid the blind angle of lighting. The mounting clip is perfectly hidden inside the profile. The series is suitable for such special lighting areas as office lighting, commercial lighting and household lighting, etc.

Products

Filter options
OFFON

Products

Products Index
Reset
22/1448

  • Free Line Series 3.0 LS36100S-G

    newFree Line Series 3.0 LS36100S-G
    Quick info
    Parameter

    Material: AL6063-T5

    Surface: anodized/painted

    Cover: anti-glare

    Power: 24W/1.2m 30W/1.5m

    Lamp bead: SMD 2835

    Light source width: 17 mm

    Available length: 0.6-3m

    Size: L1187xW36xH100mm L1482xW36xH100mm

    Voltage: 220-240V/100-277V

    Power factor: >0.95

  • Free Line Series 3.0 LS5878S-G

    newFree Line Series 3.0 LS5878S-G
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/ Painting

    Cover:Anti-glare

    Power:24 W/1.2m 30W/1.5m

    Lamp beads:SMD 2835

    Lighting source width:17 mm

    Available lengths:0.6-3m

    Dimension:L1187xW58xH78mm L1482xW58xH78mm

    Voltage:220-240V/100-277V

    Power factor :>0.95

  • Deep recessed light profile LP2926

    newDeep recessed light profile LP2926
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/Painting

    PC cover:Diffuser/Transparent/Opal/Black

    Power:9.6W/m

    Input voltage:12VDC/24VDC

    Lamp beads:320LEDs/m (COB) 120LEDs/m (SMD2835)

    Lighting source width:13mm(max.)

    Available lengths:0.5-3m

    Application:Commercial lighting/Indoor lighting

  • Deep recessed light profile LP2837

    newDeep recessed light profile LP2837
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/Painting

    PC cover:Diffuser/Transparent/Opal/Black

    Power:9.6W/m

    Input voltage:12VDC/24VDC

    Lamp beads:320LEDs/m (COB) 120LEDs/m (SMD2835)

    Lighting source width:12mm(max.)

    Available lengths:0.5-3m

    Application:Commercial lighting/Indoor lighting

  • Deep recessed light profile LP2226

    newDeep recessed light profile LP2226
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/ Painting

    PC cover:Diffuser/Transparent /Opal/Black

    Power:14.4W/m

    Input voltage:12VDC/24VDC

    Lamp beads:320LEDs/m (COB) 120LEDs/m (SMD2835)

    Lighting source width:13.5 mm(max.)

    Available lengths:0.5-3m

    Application:Commercial lighting / Indoor lighting

  • Deep recessed light profile LP2037

    newDeep recessed light profile LP2037
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/ Painting

    PC cover:Diffuser /Transparent /Opal/Black

    Power:14.4W/m

    Input voltage:12VDC/24VDC

    Lamp beads:320LEDs/m (COB) 120LEDs/m (SMD2835)

    Lighting source width:12.8 mm(max.)

    Available lengths:0.5-3m

    Application:Commercial lighting / Indoor lighting

  • Decorative Profile LD6868

    newDecorative Profile LD6868
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/Painting

    PC cover:Diffuser/Transparent/Opal/Black

    Power:28W/m

    Input voltage:12VDC/24VDC

    Lamp beads:320LEDs/m (COB) 120LEDs/m (SMD2835)

    Lighting source width:10mm(max.) x2pcs

    Available lengths:0.5-3m

    Application:Commercial lighting / Indoor lighting

  • Decorative Profile LD5023

    Decorative Profile LD5023
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/Painting

    PC cover:Diffuser/Transparent/Opal/Black

    Power:14.4 W/m

    Input voltage:12VDC/24VDC

    Lamp beads:320LEDs/m (COB) 120LEDs/m (SMD2835)

    Lighting source width:12mm(max.)

    Available lengths:0.5-3m

    Application:Commercial lighting / Indoor lighting

  • Decorative Profile LD4627

    newDecorative Profile LD4627
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/Painting

    PC cover:Diffuser/Transparent/Opal/Black

    Power:14.4 W/m

    Input voltage:12VDC/24VDC

    Lamp beads:320LEDs/m (COB) 120LEDs/m (SMD2835)

    Lighting source width:12mm(max.)

    Available lengths:0.5-3m

    Application:Commercial lighting / Indoor lighting

  • Decorative Profile LD5318

    newDecorative Profile LD5318
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/Painting

    PC cover:Diffuser/Transparent/Opal/Black

    Power:7.2 W/m

    Input voltage:12VDC/24VDC

    Lamp beads:320LEDs/m (COB) 120LEDs/m (SMD2835)

    Lighting source width:10mm (max.)

    Available lengths:0.5-3m

    Application:Commercial lighting / Indoor lighting

  • Decorative Profile LD123120B

    newDecorative Profile LD123120B
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/ Painting

    PC cover:Diffuser/Transparent/Opal/Black

    Power:14.4W/m

    Input voltage:12VDC/24VDC

    Lamp beads:320LEDs/m (COB) 120LEDs/m (SMD2835)

    Lighting source width:13mm (max.)

    Available lengths:0.5-3m

    Application:Commercial lighting / Indoor lighting

  • Decorative Profile LD123120

    newDecorative Profile LD123120
    Quick info
    Parameter

    Material:AL6063-T5

    Surface:Anodized/ Painting

    PC cover:Diffuser /Transparent/Opal/Black

    Power:14.4W/m

    Input voltage:12VDC/24VDC

    Lamp beads:320LEDs/m (COB) 120LEDs/m (SMD2835)

    Lighting source width:13mm (max.)

    Available lengths:0.5-3m

    Application:Commercial lighting / Indoor lighting
