Information
-

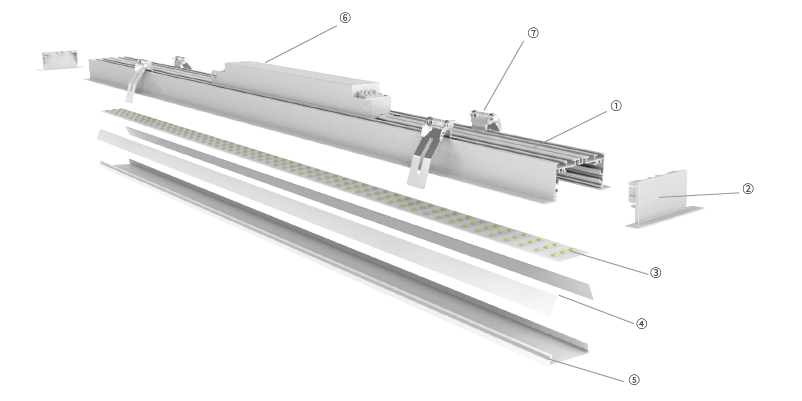

①Profile
-
② End cap
-
③ Lighting source
-
④ Reflective paper
-
⑤ Cover
-
⑥ Power supply
-
⑦ Butterfly clip
Downloads
Catalogue pageProducts
Order Guide
| Name | Order code | Discription | Size | Color | Picture |
| 7236 kit | LS7236S001 | Profile+heat sink+cover | 72*36*2500mm | silver/black |  |
| Profile | LS7236SPRO | AL 6063-T5 | 2500mm | silver/black |  |
| Cover | LS7236SCOV | PC | 2500mm | Diffuser（white） |  |
END CAP | LS7236S002 | PC | 72*36mm | silver/black |    |
PCB | NJG-499-12C10B-2 | Lumen:3600LM P: 36W/m,Ra>80 | Width: 55mm | White |  |
7236-T | LS7236SZJT | standard part | - | silver/black |  |
| 7236-X | LS7236SZJX | standard part | - | silver/black |  |
| 7236-L | LS7236SZJL | standard part | - | silver/black |  |
| 7236-L-IN | LS7236SZJI | standard part | - | silver/black |  |
| 7236-L-OUT | LS7236SZJO | standard part | - | silver/black |  |
Embed buckle | LSXXXXSHDQ | Stainless steel | - | Silver |  |
| Splicing kit | LSXXXXSPJT | Connector+screw+wrench | 45*9.3*2.0mm | silver |  |
Wire protection | LSXXXXHXB | PWD:3.5X4mm Wire:∅≤ 5mm | - | - |  |
| Reflector | LSXXXXFGP | Increase efficacy by 17% | 1000*15*0.25mm | White |  |
