FA0010-2023-2-13
Product details
Back to overview
Parameter
  • Housing Material:Aluminium
  • Optics Material:PC
  • Rated Input Voltage(V):220-240VAC
  • Input Voltage(V):200-264VAC
  • CCT(K): 1-CCT: 3000K/4000K/5000K/5700K
  • 3-CCT: 3000K + 4000K + 5700K
  • CCT Selection DIP Switch:YES
  • SDCM:<6
  • LED Driver:Built-in
  • Ingress Protection(IP Rating):IP20
  • Impact Resistance(IK Rating):IK06
  • Lifetime (hr):50,000h
  • Operating Temp.(°C)：-20℃ ~45℃
  • Storage Temp.(°C)：-20℃ ~65℃
  • Installation:Suspended/Surface ceiling/Wall mounted/Recessed/Linkable

Downloads

Products

Order Guide
Model No.
Dimension(mm)Watt(W)Luminous Flux (lm)
±5% (4000K)		Beam AngleUGRCRIDimming OptionProduct Finishing

light

distribution

FA0012-1200-36WL1200*W58*H7836W4150lmDown 80°
<2280/90NO/0-10V/DALI

Silver/Black/White

角度图标_画板 1.png
FA0012-1200-50WL1200*W58*H7850W5750lmUP 110°
Down 80°		<2280/90NO/0-10V/DALI

Silver/Black/White

上下出光80_画板 1 副本 2_画板 1 副本 2.png
FA0012-1500-45WL1500*W58*H7845W5200lmDown 80°<2280/90NO/0-10V/DALI

Silver/Black/White

角度图标_画板 1.png
FA0012-1500-60WL1500*W58*H7860W6900lmUP 110°
Down 80°		<2280/90NO/0-10V/DALI

Silver/Black/White

上下出光80_画板 1 副本 2_画板 1 副本 2.png
FA012-1800-54WL1800*W58*H7854W6200lmDown 80°<2280/90NO/0-10V/DALI

Silver/Black/White

角度图标_画板 1.png
FA0012-1800-72WL1800*W58*H7872W8300lmUP 110°
Down 80°		<2280/90NO/0-10V/DALI

Silver/Black/White

上下出光80_画板 1 副本 2_画板 1 副本 2.png

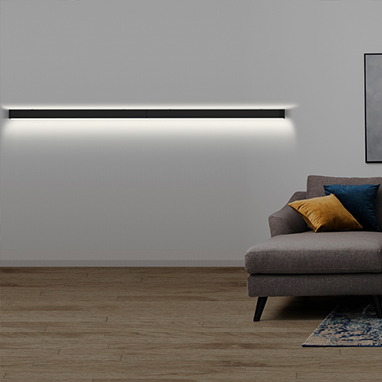

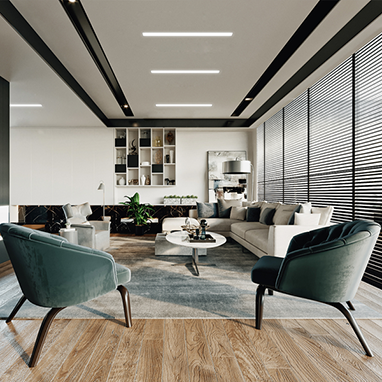

Application effect2
