Free Line Series 3.0 LS5270S-III-R

未标题-1
未标题-1D
LS5270S-III-R
LS5270S-III-R-2
Product details

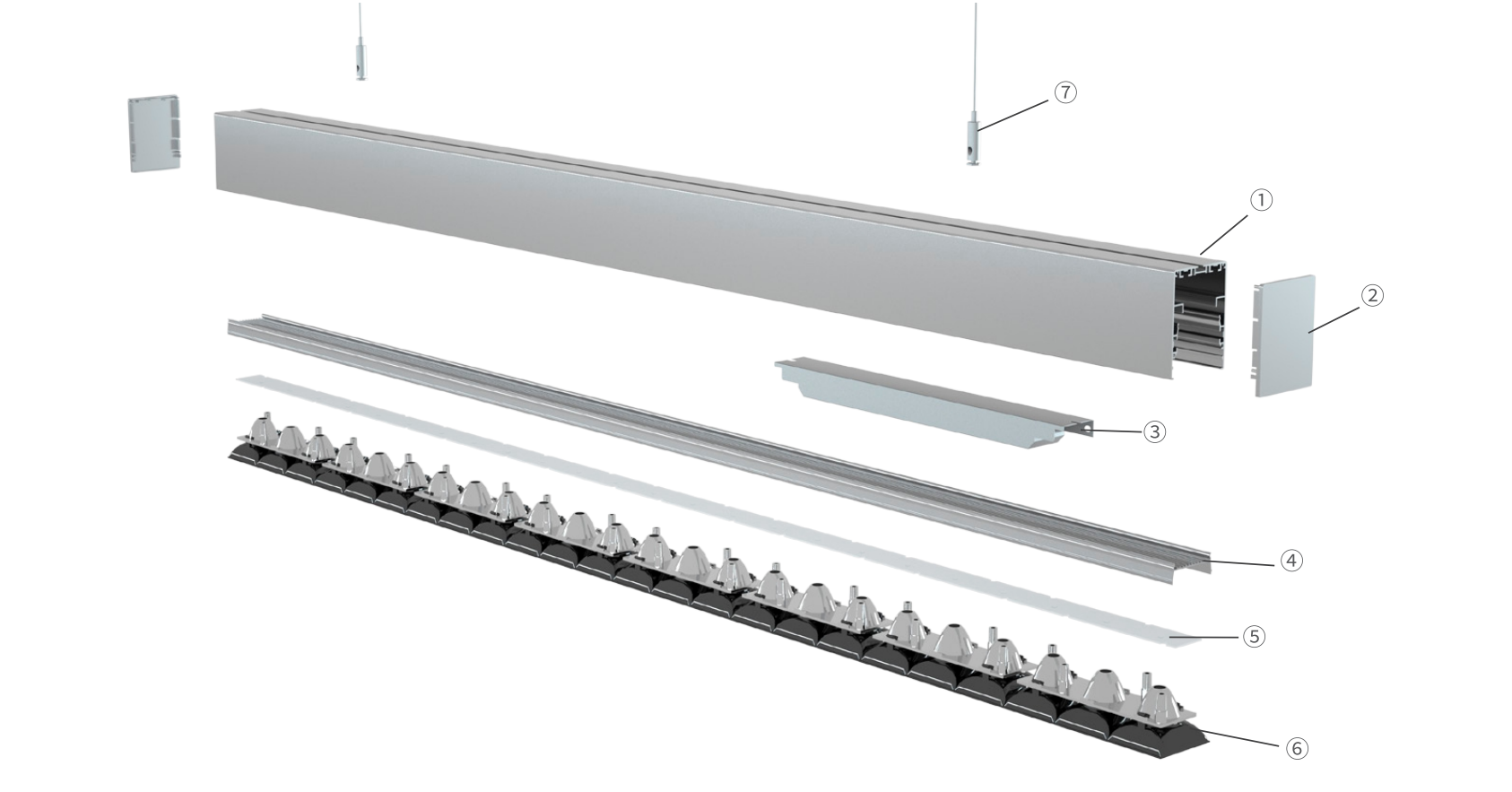

Information

  • Profile

  • End cap

  • Power supply

  • Heat sink

  • Lighting source

  • Reflector cup

  • Pendant

Heated structure

Temperature (solid) (° C)

exterior view 1 : contour line

Temper ature ambient:25° C

36W/m test

Downloads

Products

Order Guide
NameOrder codeDiscriptionSize

Color

LS5270S-III-R kitLS5270S-III-R001

Profile+heat sink+cover

52*70*2500mmsilver/black/white(ral9016)image.png
ProfileLS5270S-III-RPROAL 6063-T52500mmsilver/black/white(ral9016)  image.png
Heat sinkLS5270S-III-RHSKAL 6063-T52500mmAnodized      image.png
Anti-dazzle grilleLS5270S-III-RADGPC50mm       -       image.png

END CAP

LS5270S-III-R002APC50*70mmPainting    image.png

FR4

NJG-30X280 5C 1B

Lumen:2700LM

P: 30W/m,Ra>80

Width: 30mm

   White

image.pngimage.png    image.png

Terminal box

LSXXXXSJXHAnti-fire PC

80*80*38mm

Silver     image.pngimage.png   image.png
Terminal boxLSXXXXSJXH-01IronΦ130mm* height 38mmsilver/black/white(ral9016)         image.png
Terminal boxLSXXXXSJXH-02IronΦ130mm* height 38mmsilver/black/white(ral9016)         image.png
Terminal boxLSXXXXSJXH-03IronΦ130mm* height 38mmSilver         image.png

Pendant kit

LSXXXXSDZJ

Steel wire、copper

2000mm

Silver    image.png

Pendant kit

LSXXXXSDZJ-01

Steel wire、copper

2000mm


Embed buckle

LSXXXXSNQB

Stainless steel

-

Silver    image.pngimage.png image.png

Surface mounted clip

LSXXXXSPJBM

Stainless steel

     -

       -image.pngimage.png  image.png

Wire protection

LSXXXXHXB

PWB:3X4mm

     -

    -       image.png
