Free Line Series 3.0 LS4688S-I-N

LS4688 吊装 高罩子-02
LS4688 吊装 高罩子-01
LS4688 吊装 高罩子-04
LS4688 吊装 高罩子-03
Product details

Information

  • End cap

  • Profile

    Installation:Pendant/ Surface mounted/ Wall mounted/ Recessed

    Material:Aluminium 6063-T5

    Available lengths:1.0/1.2/1.5/1.8/2.0/2.5m

    IP:IP20/IP44/IP65

  • Pendant

  • Power supply

  • Heat sink

  • Lighting source

  • Anti-dazzle grille

  • Cover

    Cover:PC

    Available lengths:1.0/1.2/1.5/1.8/2.0/2.5m

    Transmittance:85%

Heated structure

Temperature (solid) (°C)

exterior view 1 : contour line


Temper ature ambient:25°C

30W/m test

Downloads

Products

Order Guide
NameOrder codeDiscriptionSize

Color

LS4688S-I-N kitLS4688S-I-N001

Profile+heat sink+cover

46*88*2500mmsilver/black/white(ral9016)        image.png
ProfileLS4688S-I-NPROAL 6063-T52500mmsilver/black/white(ral9016)         image.png
Heat sinkLS4688S-I-NHSKAL 6063-TS2500mmsilver/black/white(ral9016)      image.png
Anti-glare filmLSXXXXFGPIncrease efficacy by 20%2500mmWhite image.png
aluminum coverLS4688S-I-NAIMAluminum 6063-T52500mmsilver/black/white(ral9016)image.png
Black coverLS4688S-I-NBAKPC2500mmblackimage.png
Flexible coverLS4688S-I-NC22PC20mDiffuser(white)     image.png

END CAP

LS4688S-I-N002APC46*88mmsilver/black/white (ral9016)image.pngimage.png          image.png
magnet End capLS4688S-I-N002BPC46*88mmsilver/black/white (ral9016)        image.png

Magnet

LS4688S-I-N002Bmagnet      -     silverimage.pngimage.png       image.png

Magnetic endcap clip

LS4688S-I-N002B201 stainless steel      -    silver     image.png

PCB

NJG-499-12C10B-2

Lumen:3000LM

P: 36W/m,Ra>80

Width: 23mm


White


image.pngimage.png    image.png

LS4688S-I-N-T

LS4688S-I-NZJT

    standard part

-

silver/black/white(ral906)      image.png
LS4688S-I-N-XLS4688S-I-NZJXstandard part-silver/black/white(ral906)          image.png
LS4688S-I-N-LLS4688S-I-NZJLstandard part-silver/black/white(ral906)             image.png
LS4688S-I-N-L-INLS4688S-I-NZJIstandard part-silver/black/white(ral906)        image.png
LS4688S-I-N-L-OUTLS4688S-I-NZJOstandard part-silver/black/white(ral906)          image.png
Free connectorLSXXXXSPJX          X
30°≤∠A≤150°
-Silver           image.png
Free connectorLSXXXXSPJY          T
30°≤∠B≤150°
-Silver          image.png
Free connectorLSXXXXSPJLC          L
30°≤∠C≤150°
-Silver                   image.png
Free connectorLSXXXXSPJLD   L(vertical)
30°≤∠C≤150°
-Silver                  image.png
Splicing kitLSXXXXSPSJ120° splicing strip-Silver              image.png
Splicing kitLSXXXXSPJLA60° splicing strip-Silver            image.png
Splicing kitLSXXXXSPJLA120° splicing strip-Silver         image.png
Splicing kitLSXXXXSPJTConnector+screw45*9.3*2.0mmSilver            image.png
Splicing kitLSXXXXSPJLAConnector+screw-Silver             image.png
Splicing kitLSXXXXSPJLAConnector+screw-Silver            image.png

Terminal box

LSXXXXSJXHAnti-fire PC

80*80*38mm

Silver     image.pngimage.png         image.png
Pendant kitl.SXXXXSDZJSteel wire、CDpper2000mmsilver         image.png
Pendant kitl.SXXXXSDZJ-01Steel wire、Opper2000mmsilver    image.png
Tenninal boxLSXXXXSJXH-01IronΦ130mm*H38mmsilver/black/white (ral9016)       image.png
Tenninal boxl.SXXXXSJXH-02IronΦ130mm*H38mmsilver/black/white (ral9016)       image.png
Tenninal boxl.SXXXXSJXH-03IronΦ130mm*H38mmsilver/black/white (ral9016)        image.png

Embed buckle

LSXXXXSNQB

Stainless steel

         -

Silver    image.pngimage.png image.png

Surface mounted clip

LSXXXXSPJBM

Stainless steel

     -

    unpainted stainless steelimage.pngimage.png  image.png

Wire protection

LSXXXXHXB

PWB:3X4mm

     -

     -       image.png

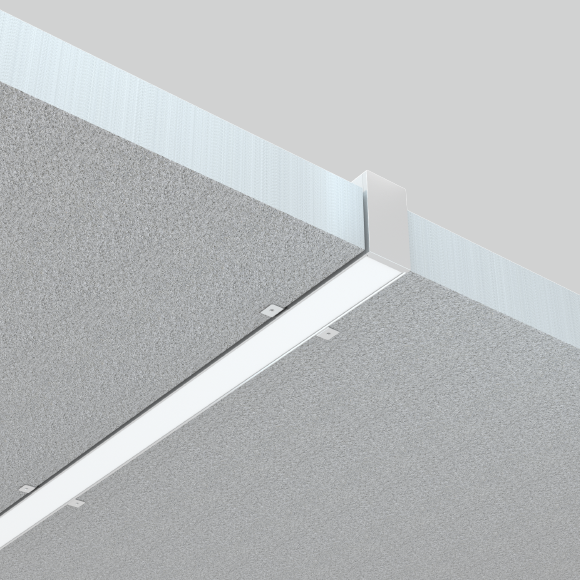

Application effect1
