Free Line 3.0 LS10936S-I-G

未标题-3-02
未标题-3-01
Product details

Information

  • Profile

  • End cap

  • Power supply

  • Lighting source

  • Reflective paper

  • Anti-glare film

  • Cover

  • Butterfly clip

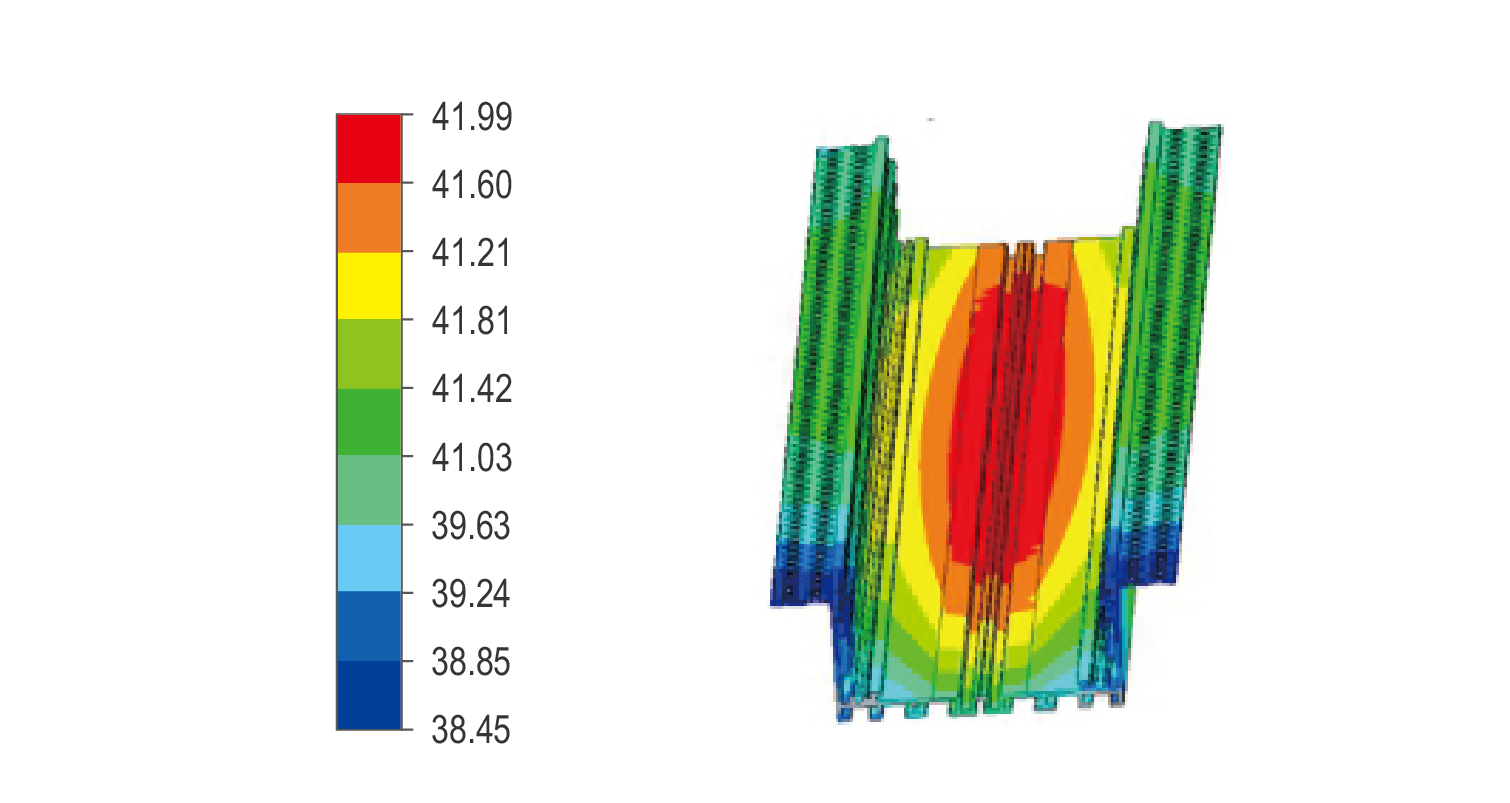

Heated structure

Temperature(solid) (°C)

exterior view 1 : contour line

Temper ature ambient:25°C

40W/m test


Downloads

Products

Order Guide
NameOrder codeDiscriptionSize

Color

LS10936S-Ⅰ-G kitLS10936S-Ⅰ-G001

Profile+heat sink+cover

109*36*2500mmsilver/black/white(ral9016)        image.png
ProfileLS10936S-Ⅰ-GPROAL 6063-T52500mmsilver/black/white(ral9016)         image.png
Anti-glare filmLSXXXXFGPIncrease efficacy by 20%2500mmWhite image.png
Anti-glare filmLS10936S-Ⅰ-GAGFPET2500mmtransparentimage.png
Flexible coverLS10936S-Ⅰ-NC22PC20mDiffuser(white)     image.png

END CAP

LS10936S-Ⅰ002APC109*36mmsilver/black/white (ral9016)image.pngimage.png          image.png

PCB

NJG-499-12C10B-2

Lumen:3000LM

P: 40W/m,Ra>80

Width: 55mm


White


image.pngimage.png    image.png

LS10936S-Ⅰ-G-T

LS10936S-Ⅰ-GZJT

    standard part

-

silver/black/white(ral906)          image.png
LS10936S-Ⅰ-G-XLS10936S-Ⅰ-GZJXstandard part-silver/black/white(ral906)          image.png
LS10936S-Ⅰ-G-LLS10936S-Ⅰ-GZJLstandard part-silver/black/white(ral906)             image.png
LS10936S-Ⅰ-G-L-INLS10936S-Ⅰ-GZJIstandard part-silver/black/white(ral906)              image.png
LS10936S-Ⅰ-G-L-OUTLS10936S-Ⅰ-GZJOstandard part-silver/black/white(ral906)              image.png
Free connectorLSXXXXSPJX          X
30°≤∠A≤150°
-Silver           image.png
Free connectorLSXXXXSPJY          T
30°≤∠B≤150°
-Silver          image.png
Free connectorLSXXXXSPJLC          L
30°≤∠C≤150°
-Silver                   image.png
Free connectorLSXXXXSPJLD   L(vertical)
30°≤∠C≤150°
-Silver                  image.png
Splicing kitLSXXXXSPSJ120° splicing strip-Silver              image.png
Splicing kitLSXXXXSPJLA60° splicing strip-Silver            image.png
Splicing kitLSXXXXSPJLA120° splicing strip-Silver         image.png
Splicing kitLSXXXXSPJTConnector+screw45*9.3*2.0mmSilver            image.png
Splicing kitLSXXXXSPJLAConnector+screw-Silver             image.png
Splicing kitLSXXXXSPJLAConnector+screw-Silver            image.png

Wire protection

LSXXXXHXB

PWB:3X4mm

     -

     -       image.png


Application effect1
