Temperature(solid) (°C)
exteriorview1:contour line
Temper ature ambient:25°C
36W/m test
Information
-

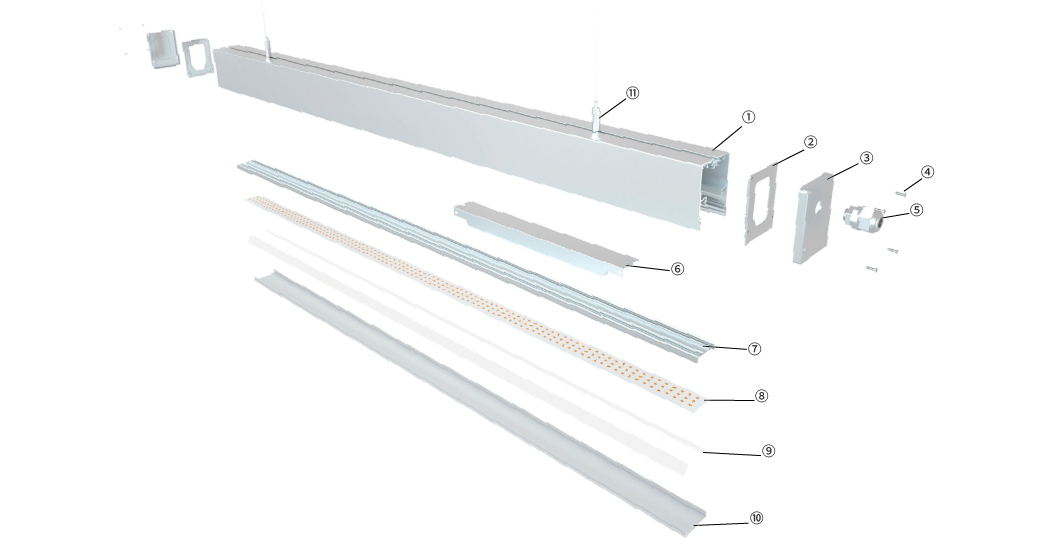

①Profile
-
② End cap waterproof ring
-
③ PC end cap
-
④ Screw
-
⑤ Waterproof PG
-
⑥ Power supply
-
⑦ Heat sink
-
⑧ Lighting source
-
⑨ Reflective paper
-
Cover
-

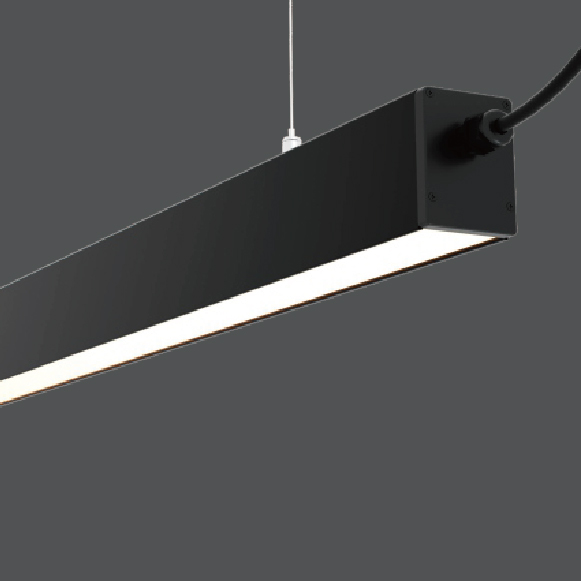

Pendant
Heated structure
Downloads
Catalogue pageProducts
Order Guide
| Name | Order code | Discription | Size | Color | Picture |
| LS5270S-III-W kit | LS5270S-III-W001 | Profile+heat sink+cover | 52*70*2500mm | silver/black/whit（ral9016） |  |
| Profile | LS5270S-III-WPRO | AL 6063-T5 | 2500mm | silver/black/whit（ral9016） |  |
| Heat sink | LS5270S-III-WHSK | AL 6063-TS | 2500mm | silve/b1ack/White(ral9016) |  |
| Anti-glare film | LSXXXXFGP | Increase efficacy by 20% | 2500mm | White |  |
| Aluminum cover | LS5270-III-NAIM | aluminum cover | 2500mm | silver/black/white（ral9016） |  |
| Black cover | LS5270-III-NBAK | PC | 2500mm | black |  |
| Cover | LS5270-III-NCOV | PC | 2500mm | Diffuser（white） |  |
| Flexible cover | LS5270-III-NC22 | PC | 20m | Diffuser（white） |  |
End cap kit | LS5270S-III-W002B | PC | 52*70mm | silver/black/white (ral9016) |    |
Silicone band | LSXXXXGJT | ∅=2.5mm | - | Transparent |  |
PCB | NJG-499-12C10B-2 | Lumen:3000LM P: 36W/m,Ra>80 | Width: 23mm | |  |
Terminal box | LSXXXXSJXH | Anti-fire PC | 80*80*38mm | Silver |  |
| Pendant kit | l.SXXXXSDZJ | Steel wire、CDpper | 2000mm | silver |  |
| Pendant kit | l.SXXXXSDZJ-01 | Steel wire、Opper | 2000mm | silver |  |
| Tenninal box | LSXXXXSJXH-01 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
| Tenninal box | l.SXXXXSJXH-02 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
| Tenninal box | l.SXXXXSJXH-03 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
Embed buckle | LSXXXXSNQB | Stainless steel | - | Silver |  |
Surface mounted clip | LSXXXXSPJBM | Stainless steel | - | unpainted stainless steel |  |
Wire protection | LSXXXXHXB | PWB:3X4mm | - | - |  |
