Free Line 3.0 LS5270S-III-N

未标题-3-15
未标题-3-16
未标题-3-17
未标题-4-04
Product details

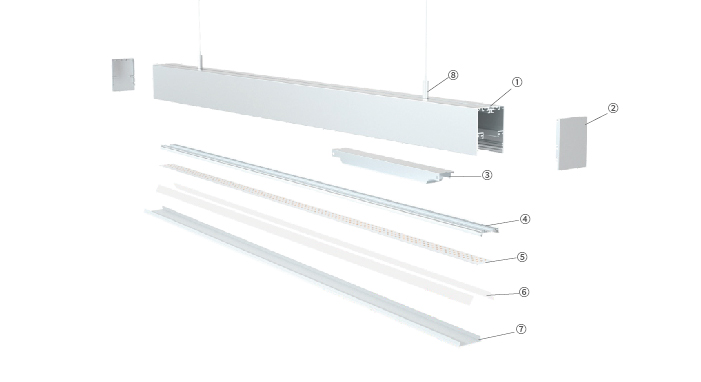

Information

  • Profile

  • End cap

  • Power supply

  • Heat sink

  • Lighting source

  • Reflective paper

  • Cover

  • Pendant

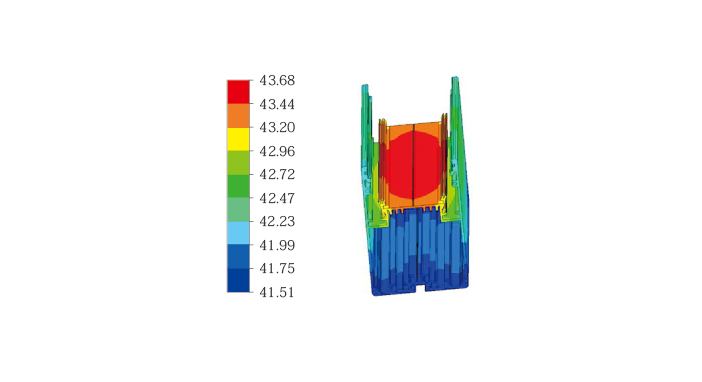

Heated structure

Temperature(solid) (°C)

exterior view 1 : contour line

Temper ature ambient:25°C

36W/m test


Downloads

Products

Order Guide
NameOrder codeDiscriptionSize

Color

LS5270S-III-N kitLS5270S-III-N001

Profile+heat sink+cover

52*70*2500mmsilver/black/whit(ral9016)        image.png
ProfileLS5270S-III-NPROAL 6063-T52500mmsilver/black/whit(ral9016)           image.png
Heat sinkLS5270S-III-NHSKAL 6063-TS2500mmsilve/b1ack/White(ral9016)      image.png
Anti-glare filmLSXXXXFGPIncrease efficacy by 20%2500mmWhite     image.png
aluminum coverLS5270S-III-NAIMAluminum 6063-T52500mmsilver/black/white(ral9016)         image.png
Black coverLS5270S-III-NBAKPC2500mmblack         image.png
CoverLS5270S-III-NCOVPC2500mmDiffuser(white)           image.png
Flexible coverLS5270S-III-NC22PC20mDiffuser(white)           image.png

END CAP

LS5270S-III-N002APC52*70mmsilver/black/white (ral9016)image.pngimage.png             image.png
magnet End capLS5270S-III-N002BPC52*70mmsilver/black/white (ral9016)           image.png

Magnet

LS5270S-III-N002Bmagnet      -     silver  image.pngimage.png       image.png

Magnetic endcap clip

LS5270S-III-N002B201 stainless steel      -    silver      image.png

PCB

NJG-499-12C10B-2

Lumen:3000LM

P: 36W/m,Ra>80

Width: 23mm


White


   image.pngimage.png    image.png

LS4688S-I-N-T

LS5270S-III-N-T

    standard part

-

silver/black/white(ral906)      image.png
LS4688S-I-N-XLS5270S-III-N-Xstandard part-silver/black/white(ral906)          image.png
LS5270S-III-N-LLS5270S-III-NZJLstandard part-silver/black/white(ral906)             image.png
LS5270S-III-N-L-INLS5270S-III-NZJIstandard part-silver/black/white(ral906)        image.png
LS5270S-III-N-L-OUTLS5270S-III-NZJOstandard part-silver/black/white(ral906)          image.png
Free connectorLSXXXXSPJX          X
30°≤∠A≤150°
-Silver           image.png
Free connectorLSXXXXSPJY          T
30°≤∠B≤150°
-Silver          image.png
Free connectorLSXXXXSPJLC          L
30°≤∠C≤150°
-Silver                   image.png
Free connectorLSXXXXSPJLD   L(vertical)
30°≤∠C≤150°
-Silver                  image.png
Splicing kitLSXXXXSPSJ120° splicing strip-Silver              image.png
Splicing kitLSXXXXSPJLA60° splicing strip-Silver            image.png
Splicing kitLSXXXXSPJLA120° splicing strip-Silver         image.png
Splicing kitLSXXXXSPJTConnector+screw45*9.3*2.0mmSilver            image.png
Splicing kitLSXXXXSPJLAConnector+screw-Silver             image.png
Splicing kitLSXXXXSPJLAConnector+screw-Silver            image.png

Terminal box

LSXXXXSJXHAnti-fire PC

80*80*38mm

Silver     image.pngimage.png         image.png
Pendant kitl.SXXXXSDZJSteel wire、CDpper2000mmsilver         image.png
Pendant kitl.SXXXXSDZJ-01Steel wire、Opper2000mmsilver    image.png
Tenninal boxLSXXXXSJXH-01IronΦ130mm*H38mmsilver/black/white (ral9016)       image.png
Tenninal boxl.SXXXXSJXH-02IronΦ130mm*H38mmsilver/black/white (ral9016)       image.png
Tenninal boxl.SXXXXSJXH-03IronΦ130mm*H38mmsilver/black/white (ral9016)        image.png

Embed buckle

LSXXXXSNQB

Stainless steel

         -

Silver    image.pngimage.png image.png

Surface mounted clip

LSXXXXSPJBM

Stainless steel

     -

    unpainted stainless steelimage.pngimage.png  image.png

Wire protection

LSXXXXHXB

PWB:3X4mm

     -

     -       image.png


Application effect1
