Temperature(solid) (°C)
exterior view 1 : contour line
Temper ature ambient:25°C
40W/m test
Information
-
①Profile
-
② End cap
-
③ Power supply
-
④ Heat sink
-
⑤ Lighting source
-
⑥ Reflective paper
-
⑦ Cover
-
⑧ Pendant
Heated structure
Downloads
Catalogue pageProducts
Order Guide
| Name | Order code | Discription | Size | Color | Picture |
| LS7578S-III-N kit | LS7578S-III-N001 | Profile+heat sink+cover | 75*78*2500mm | silver/black/whit（ral9016） |  |

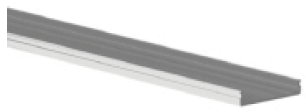

| Profile | LS7578S-III-NPRO | AL 6063-T5 | 2500mm | silver/black/whit（ral9016） |  |
| Heat sink | LS7578S-III-NHSK | AL 6063-TS | 2500mm | silve/b1ack/White(ral9016) |  |
| Anti-glare film | LSXXXXFGP | Increase efficacy by 20% | 2500mm | White |  |
| aluminum cover | LS7578S-III-NAIM | Aluminum 6063-T5 | 2500mm | silver/black/white（ral9016） |  |
| Black cover | LS7578S-III-NBAK | PC | 2500mm | black |  |
| Cover | LS7578S-III-NCOV | PC | 2500mm | Diffuser（white） |  |
| Flexible cover | LS7578S-III-NC22 | PC | 20m | Diffuser（white） |  |
END CAP | LS7578S-III-N002A | PC | 75*78mm | silver/black/white (ral9016) |    |
| magnet End cap | LS7578S-III-N002B | PC | 75*78mm | silver/black/white (ral9016) |  |
Magnet | LS7578S-III-N002B | magnet | - | silver |  |
Magnetic endcap clip | LS7578S-III-N002B | 201 stainless steel | - | silver |  |
PCB | NJG-499-12C10B-2 | Lumen:3000LM P: 40W/m,Ra>80 | Width: 55mm | |  |

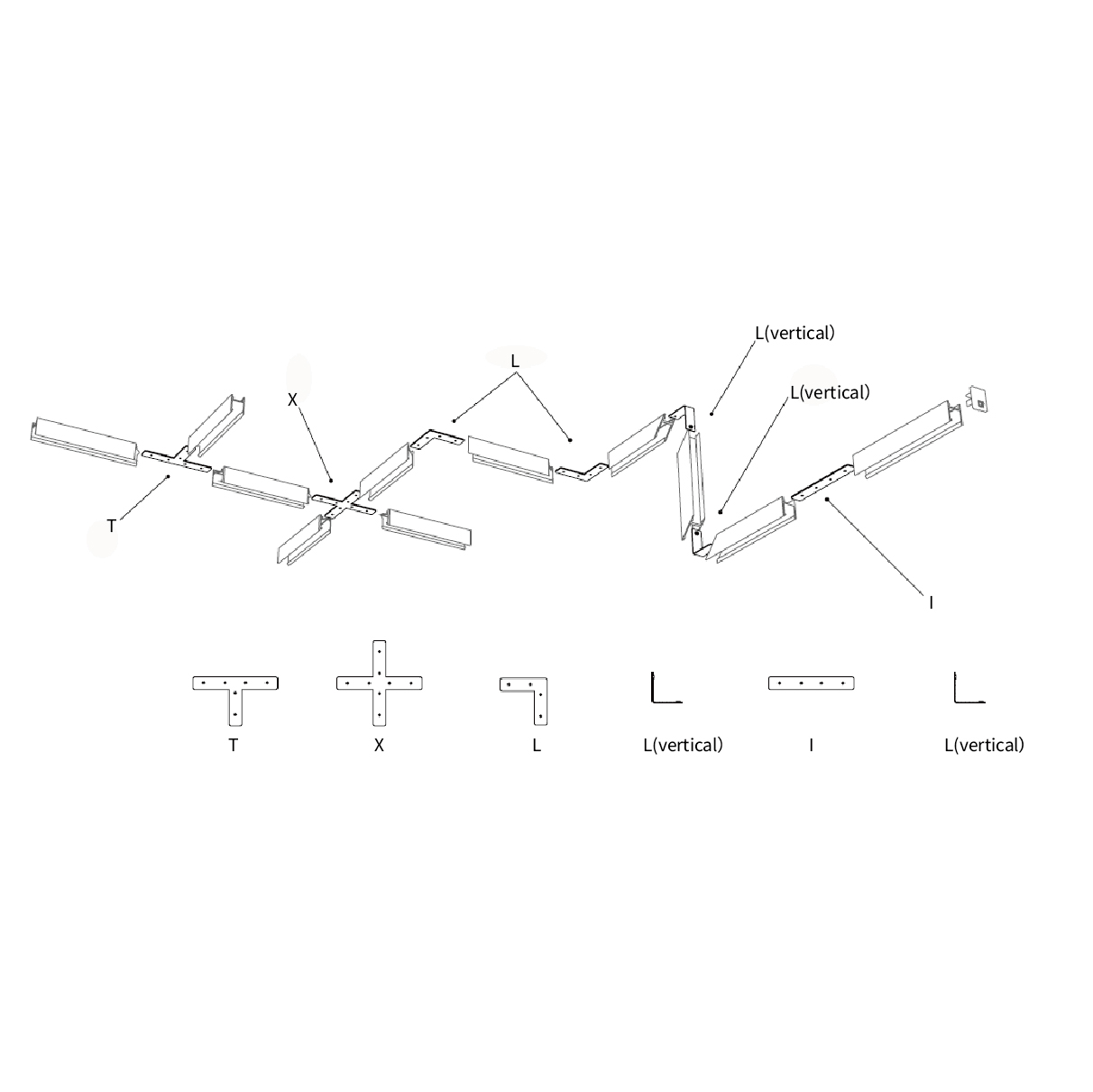

| LS7578S-III-NZJT | standard part | - | silver/black/white（ral906） |  |
| LS7578S-III-N-X | LS7578S-III-NZJX | standard part | - | silver/black/white（ral906） |  |
| LS7578S-III-N-L | LS7578S-III-NZJL | standard part | - | silver/black/white（ral906） |  |
| LS7578S-III-N-L-IN | LS7578S-III-NZJI | standard part | - | silver/black/white（ral906） |  |
| LS7578S-III-N-L-OUT | LS7578S-III-NZJO | standard part | - | silver/black/white（ral906） |  |
| Free connector | LSXXXXSPJX | X 30°≤∠A≤150° | - | Silver |  |
| Free connector | LSXXXXSPJY | T 30°≤∠B≤150° | - | Silver |  |
| Free connector | LSXXXXSPJLC | L 30°≤∠C≤150° | - | Silver |  |
| Free connector | LSXXXXSPJLD | L(vertical） 30°≤∠C≤150° | - | Silver |  |
| Splicing kit | LSXXXXSPSJ | 120° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | 60° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | 120° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJT | Connector+screw | 45*9.3*2.0mm | Silver |  |
| Splicing kit | LSXXXXSPJLA | Connector+screw | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | Connector+screw | - | Silver |  |
Terminal box | LSXXXXSJXH | Anti-fire PC | 80*80*38mm | Silver |  |
| Pendant kit | l.SXXXXSDZJ | Steel wire、CDpper | 2000mm | silver |  |
| Pendant kit | l.SXXXXSDZJ-01 | Steel wire、Opper | 2000mm | silver |  |
| Tenninal box | LSXXXXSJXH-01 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
| Tenninal box | l.SXXXXSJXH-02 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
| Tenninal box | l.SXXXXSJXH-03 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |

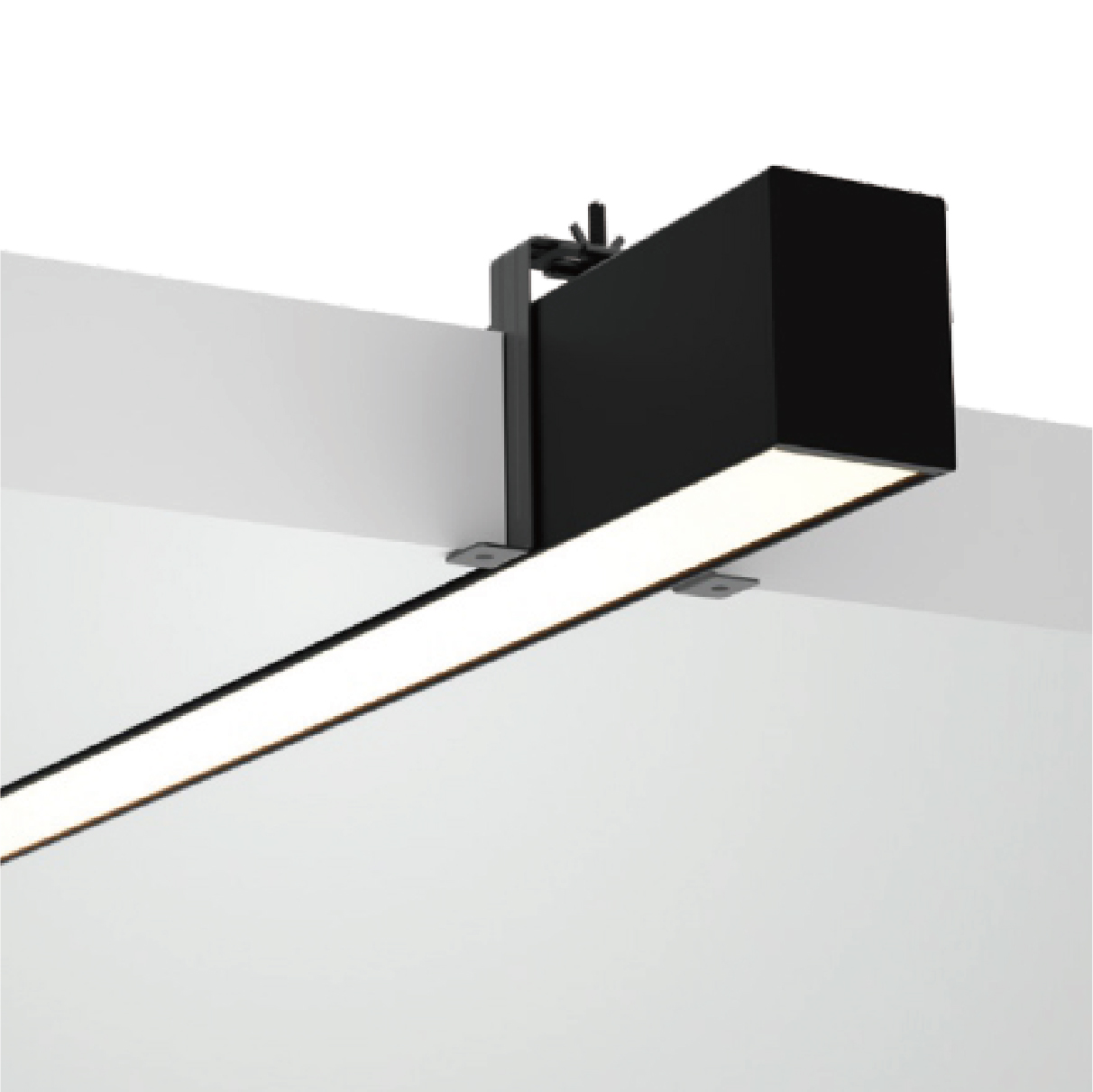

Embed buckle | LSXXXXSNQB | Stainless steel | - | Silver |  |
Surface mounted clip | LSXXXXSPJBM | Stainless steel | - | unpainted stainless steel |  |
Wire protection | LSXXXXHXB | PWB:3X4mm | - | - |  |

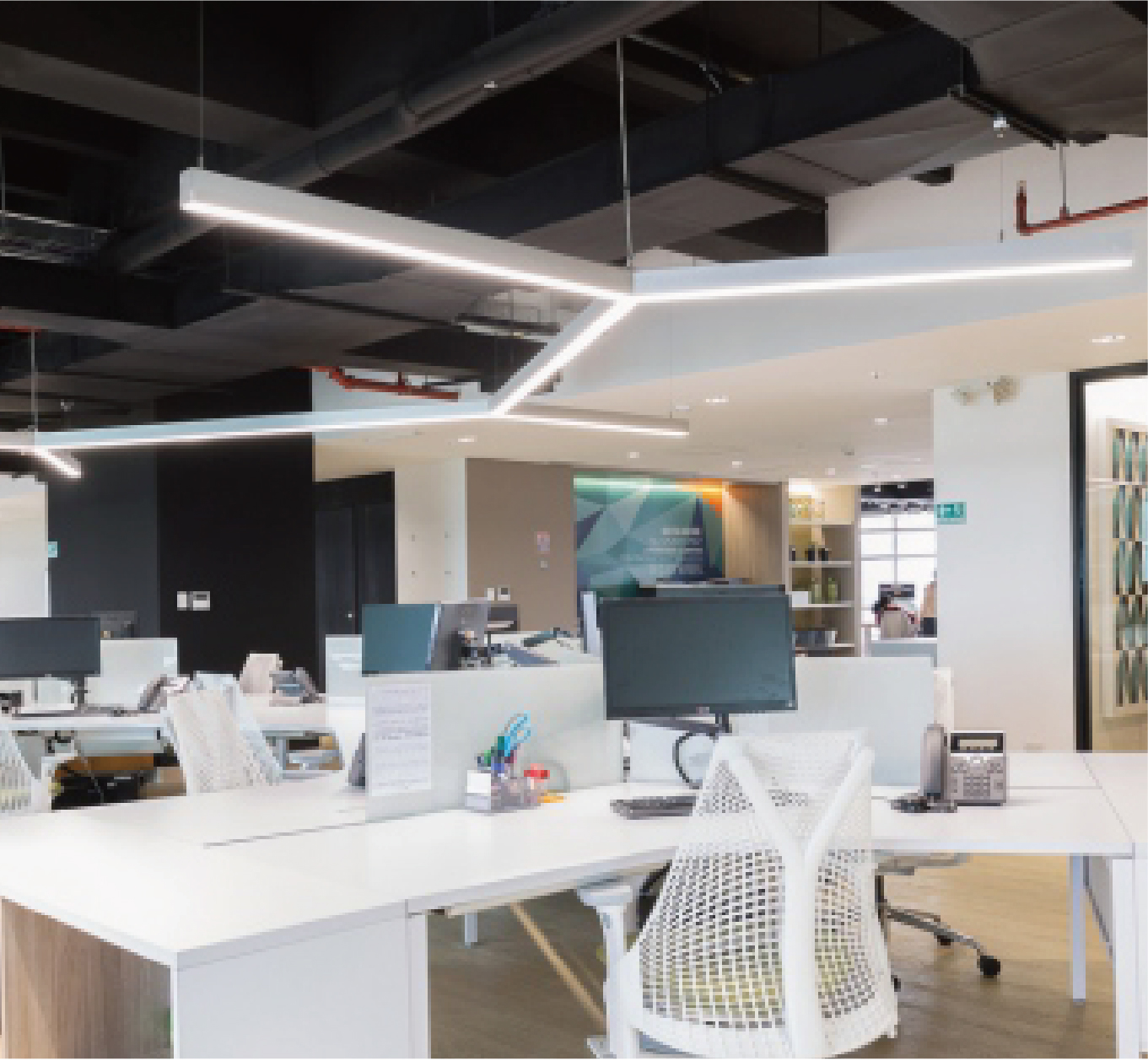

Application effect1
