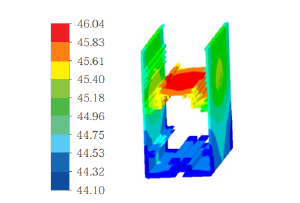

Temperature (solid) (°C)
exteriorview 1 : contourline
Temper ature ambient:25°C
36W/mtest
Information
-

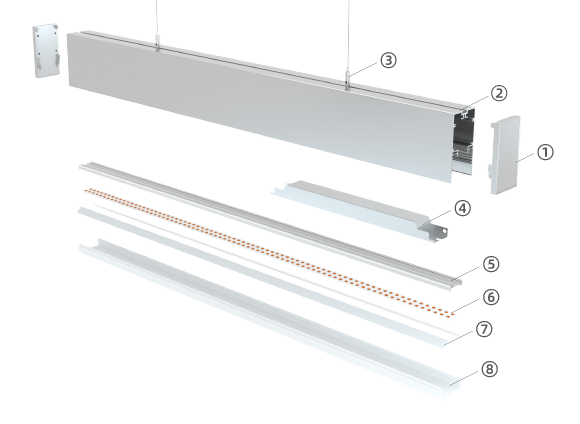

①End cap
-
② Profile

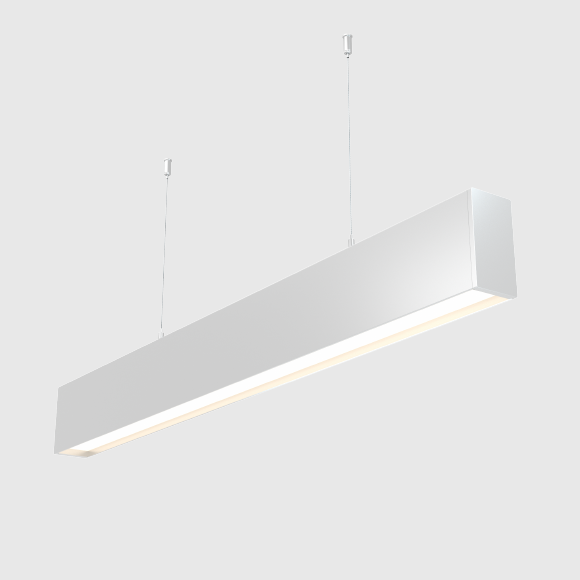

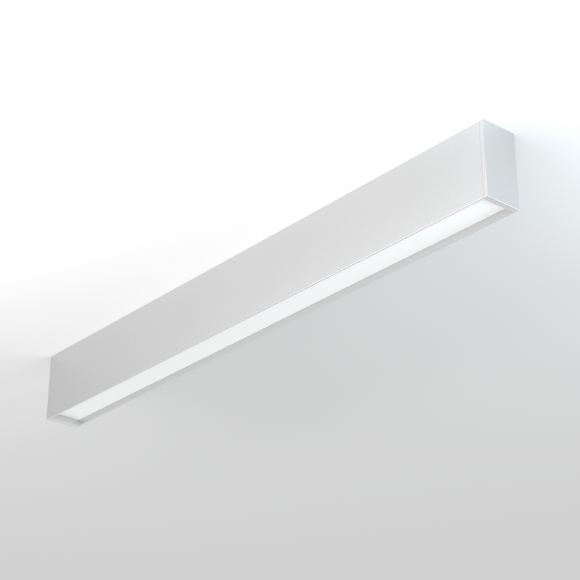

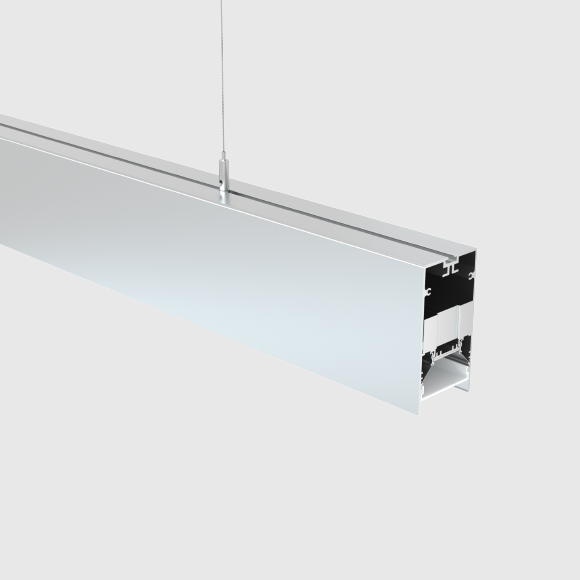

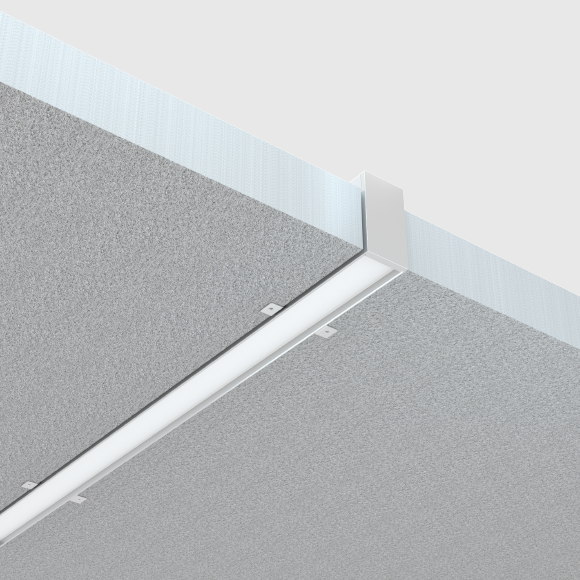

Installation:Pendant/ Surface mounted/ Wall mounted/ Recessed
Material:Aluminium 6063-T5
Available lengths:1.0/1.2/1.5/1.8/2.0/2.5m
IP:IP20/IP44/IP65
-
③ Pendant
-
④ Power supply
-
⑤ Heat sink
-
⑥ Lighting source
-
⑦ Anti-dazzle grille
-
⑧ Cover
Cover:PC
Available lengths:1.0/1.2/1.5/1.8/2.0/2.5m
Transmittance:85%
Heated structure
Downloads
Catalogue pageProducts
Order Guide
| Name | Order code | Discription | Size | Color | Picture |
| LS4688S-I-N kit | LS4688S-I-M001 | Profile+heat sink+cover | 46*88*2500mm | silver/black/whit（ral9016） |  |
| Profile | LS4688S-I-MPRO | AL 6063-T5 | 2500mm | silver/black/whit（ral9016） |  |
| Heat sink | LS4688S-I-MHSK | AL 6063-TS | 2500mm | silve/b1ack/White(ral9016) |  |
| Anti-glare film | LSXXXXFGP | Increase efficacy by 20% | 2500mm | White |  |
| aluminum cover | LS4688S-I-MAIM | Aluminum 6063-T5 | 2500mm | silver/black/white（ral9016） |  |
| Black cover | LS4688S-I-MBAK | PC | 2500mm | black |  |
| Cover | LS4688S-I-MCOV | PC | 2500mm | Diffuser（white） |  |
| Flexible cover | LS4688S-I-MC22 | PC | 20m | Diffuser（white） |  |
END CAP | LS4688S-I-N002A | PC | 46*88mm | silver/black/white (ral9016) |    |
| magnet End cap | LS4688S-I-N002B | PC | 46*88mm | silver/black/white (ral9016) |  |
Magnet | LS4688S-I-N002B | magnet | - | silver |  |
Magnetic endcap clip | LS4688S-I-N002B | 201 stainless steel | - | silver |  |
PCB | NJG-499-12C10B-2 | Lumen:3000LM P: 36W/m,Ra>80 | Width: 23mm | |  |
LS4688S-I-N-T | LS4688S-I-MZJT | standard part | - | silver/black/white（ral906） |  |
| LS4688S-I-N-X | LS4688S-I-MZJX | standard part | - | silver/black/white（ral906） |  |
| LS4688S-I-N-L | LS4688S-I-MZJL | standard part | - | silver/black/white（ral906） |  |
| LS4688S-I-N-L-IN | LS4688S-I-MZJI | standard part | - | silver/black/white（ral906） |  |
| LS4688S-I-N-L-OUT | LS4688S-I-MZJO | standard part | - | silver/black/white（ral906） |  |
| Free connector | LSXXXXSPJX | X 30°≤∠A≤150° | - | Silver |  |
| Free connector | LSXXXXSPJY | T 30°≤∠B≤150° | - | Silver |  |
| Free connector | LSXXXXSPJLC | L 30°≤∠C≤150° | - | Silver |  |
| Free connector | LSXXXXSPJLD | L(vertical） 30°≤∠C≤150° | - | Silver |  |
| Splicing kit | LSXXXXSPSJ | 120° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | 60° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | 120° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJT | Connector+screw | 45*9.3*2.0mm | Silver |  |
| Splicing kit | LSXXXXSPJLA | Connector+screw | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | Connector+screw | - | Silver |  |
Terminal box | LSXXXXSJXH | Anti-fire PC | 80*80*38mm | Silver |  |
| Pendant kit | l.SXXXXSDZJ | Steel wire、CDpper | 2000mm | silver |  |
| Pendant kit | l.SXXXXSDZJ-01 | Steel wire、Opper | 2000mm | silver |  |
| Tenninal box | LSXXXXSJXH-01 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
| Tenninal box | l.SXXXXSJXH-02 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
| Tenninal box | l.SXXXXSJXH-03 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
Embed buckle | LSXXXXSNQB | Stainless steel | - | Silver |  |
Surface mounted clip | LSXXXXSPJBM | Stainless steel | - | unpainted stainless steel |  |
Wire protection | LSXXXXHXB | PWB:3X4mm | - | - |  |
