Temperature(solid) (° C)
exterior view 1 : contour line
Temper ature ambient:25°C
30W/m test

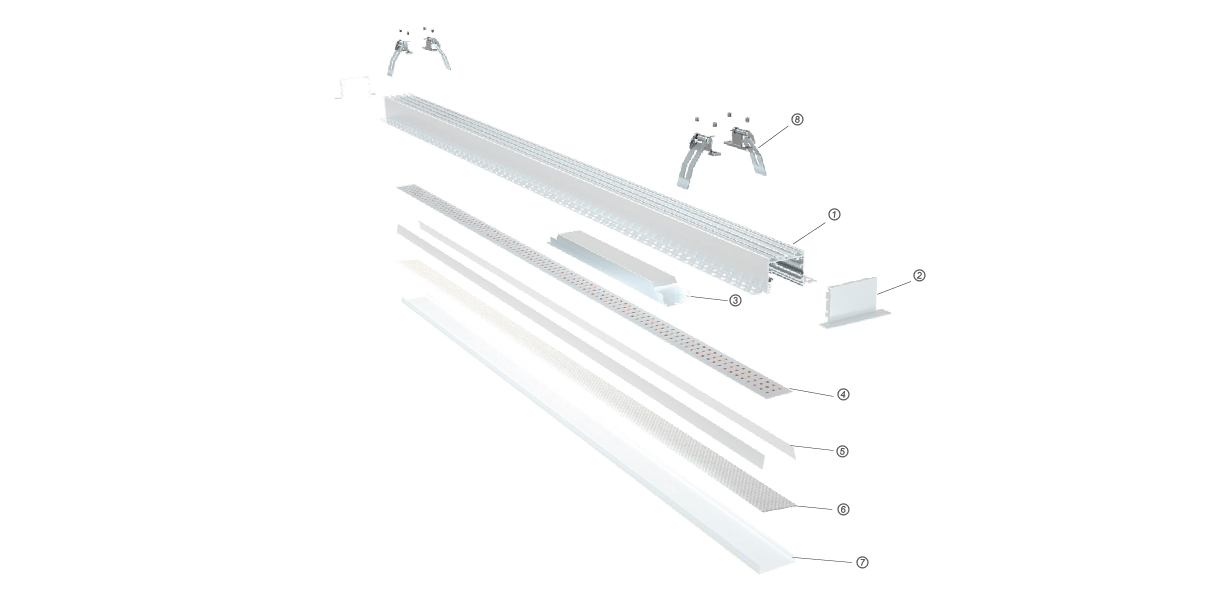

Information
-
①Profile
-
② End cap
-
③ Power supply
-
④ Lighting source
-
⑤ Reflective paper
-
⑥ Cover
-
⑦ Butterfly clip

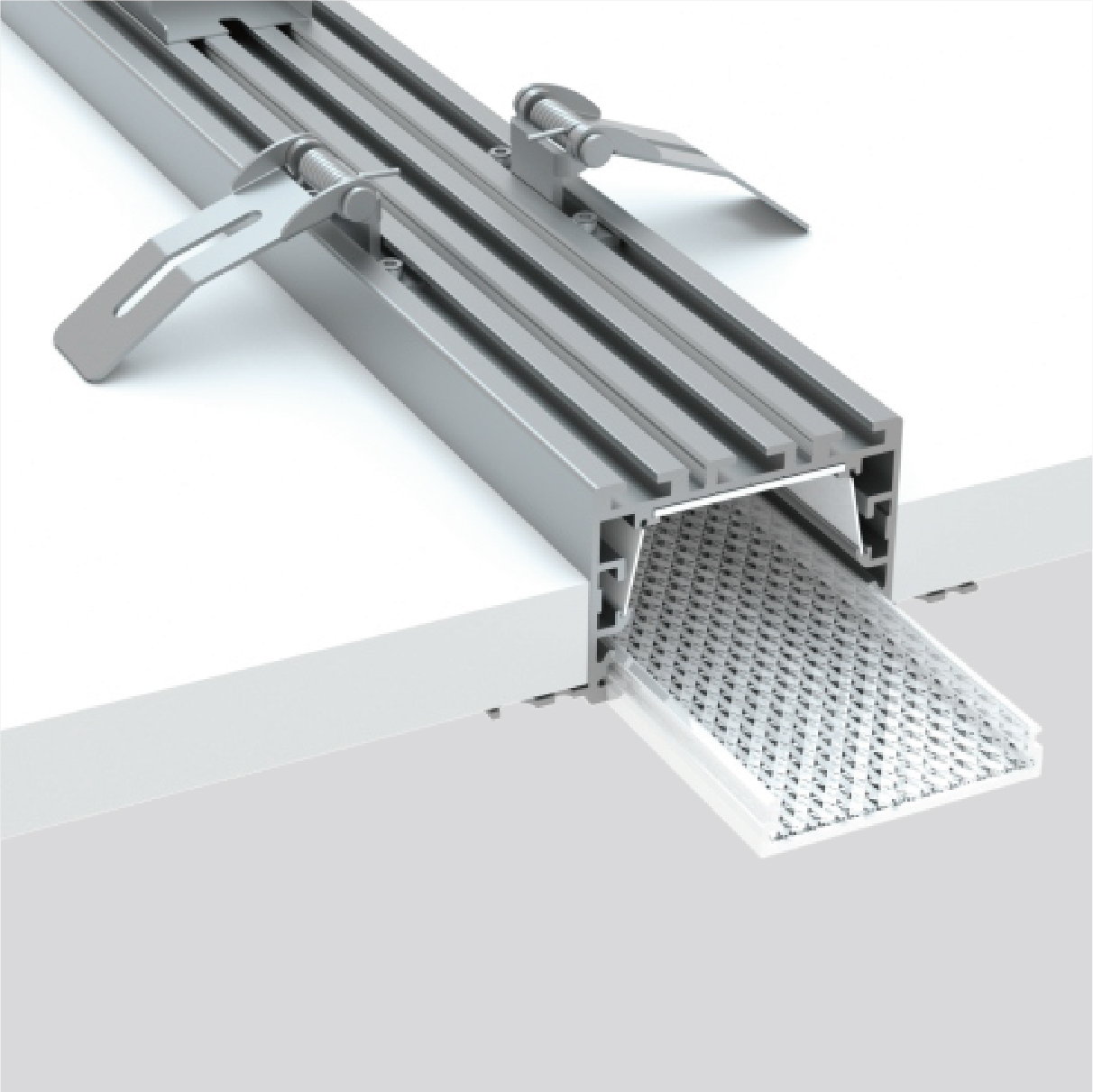

Heated structure
Downloads
Catalogue pageProducts
Order Guide
| Name | Order code | Discription | Size | Color | Picture |
| LS7436S-I-N kit | LS7436S-I-N001 | Profile+heat sink+cover | 74*36*2500mm | silver/black/white（ral9016） |  |
| Profile | LS7436S-I-NPRO | AL 6063-T5 | 2500mm | silver/black/white（ral9016） |  |
| Anti-glare film | LSXXXXFGP | Increase efficacy by 20% | 2500mm | White |  |
| aluminum cover | LS7436S-I-NAIM | Aluminum 6063-T5 | 2500mm | silver/black/white（ral9016） |  |
| Black cover | LS7436S-I-NBAK | PC | 2500mm | black |  |
| Cover | LS7436S-I-NCOV | PC | 2500mm | Diffuser（white） |  |
| Flexible cover | LS7436S-I-NC22 | PC | 20m | Diffuser（white） |  |
END CAP | LS7436S-I-N002A | PC | 74*36mm | silver/black/white (ral9016) |    |
PCB | NJG-499-12C10B-2 | Lumen:3000LM P: 30W/m,Ra>80 | Width: 23mm | |  |
LS7436S-I-N-T | LS7436S-I-NZJT | standard part | - | silver/black/white（ral906） |  |
| LS7436S-I-N-X | LS7436S-I-NZJX | standard part | - | silver/black/white（ral906） |  |
| LS7436S-I-N-L | LS7436S-I-NZJL | standard part | - | silver/black/white（ral906） |  |
| LS7436S-I-N-L-IN | LS7436S-I-NZJI | standard part | - | silver/black/white（ral906） |  |
| LS7436S-I-N-L-OUT | LS7436S-I-NZJO | standard part | - | silver/black/white（ral906） |  |
| Embed buckle | LSXXXXSNQB | Stainless steel | - | Silver |  |
| Free connector | LSXXXXSPJX | X 30°≤∠A≤150° | - | Silver |  |
| Free connector | LSXXXXSPJY | T 30°≤∠B≤150° | - | Silver |  |
| Free connector | LSXXXXSPJLC | L 30°≤∠C≤150° | - | Silver |  |
| Free connector | LSXXXXSPJLD | L(vertical） 30°≤∠C≤150° | - | Silver |  |
| Splicing kit | LSXXXXSPSJ | 120° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | 60° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | 120° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJT | Connector+screw | 45*9.3*2.0mm | Silver |  |
| Splicing kit | LSXXXXSPJLA | Connector+screw | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | Connector+screw | - | Silver |  |
Wire protection | LSXXXXHXB | PWB:3X4mm | - | - |  |
Application effect1
