Temperature(solid) (° C)
exterior view 1 : contour line
Temper ature ambient:25°C
36W/m test
Temperature(solid) (° C)
exterior view 1 : contour line
Temper ature ambient:25°C
36W/m test
Name | Order code | Discription | Size | Color | Picture |

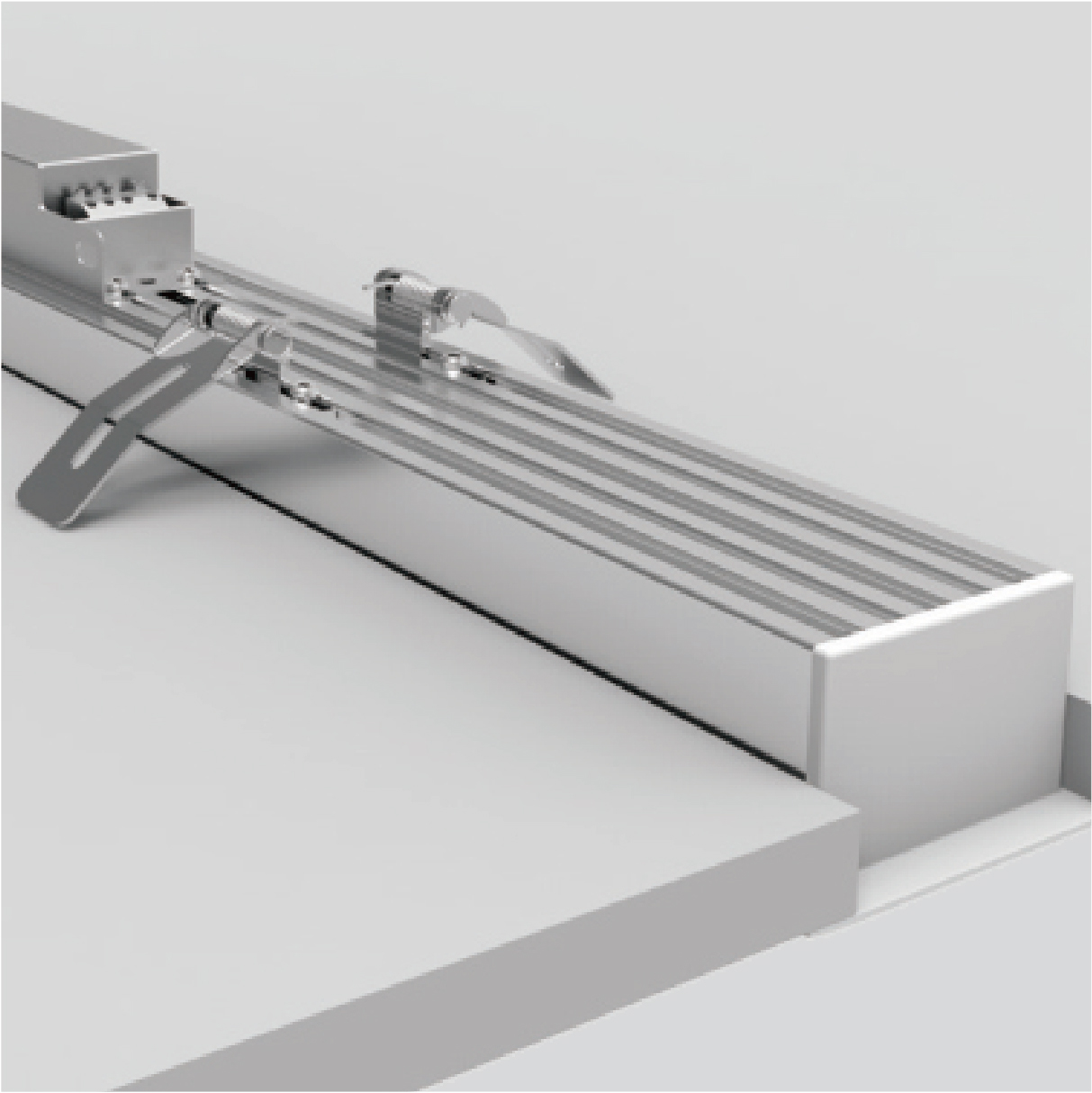

LS8436S-I-N kit | LS8436S-I-N001 | Profile+heat sink+cover | 84*36*2500mm | silver/black/white(ral9016) | |
Profile | LS8436S-I-NPRO | AL 6063-T5 | 2500mm | silver/black/white(ral9016) | |
Anti-glare film | LSXXXXFGP | Increase efficacy by 20% | 2500mm | White | |
aluminum cover | LS8436S-I-NAIM | Aluminum 6063-T5 | 2500mm | silver/black/white(ral9016) | |
Black cover | LS8436S-I-NBAK | PC | 2500mm | black | |
Cover | LS8436S-I-NCOV | PC | 2500mm | Diffuser(white) | |
Flexible cover | LS8436S-I-NC22 | PC | 20m | Diffuser(white) | |
END CAP | LS8436S-I-N002A | PC | 84*36mm | silver/black/white (ral9016) | |
PCB | NJG-499-12C10B-2 | Lumen:3000LM P: 36W/m,Ra>80 | Width: 23mm | | |
LS8436S-I-N-T | LS8436S-I-NZJT | standard part | - | silver/black/white(ral906) | |
LS8436S-I-N-X | LS8436S-I-NZJX | standard part | - | silver/black/white(ral906) | |
LS8436S-I-N-L | LS8436S-I-NZJL | standard part | - | silver/black/white(ral906) | |
LS8436S-I-N-L-IN | LS8436S-I-NZJI | standard part | - | silver/black/white(ral906) | |
LS8436S-I-N-L-OUT | LS8436S-I-NZJO | standard part | - | silver/black/white(ral906) | |
Embed buckle | LSXXXXSNQB | Stainless steel | - | Silver | |
Free connector | LSXXXXSPJX | X 30°≤∠A≤150° | - | Silver | |
Free connector | LSXXXXSPJY | T 30°≤∠B≤150° | - | Silver | |
Free connector | LSXXXXSPJLC | L 30°≤∠C≤150° | - | Silver | |
Free connector | LSXXXXSPJLD | L(vertical) 30°≤∠C≤150° | - | Silver | |
Splicing kit | LSXXXXSPSJ | 120° splicing strip | - | Silver | |
Splicing kit | LSXXXXSPJLA | 60° splicing strip | - | Silver | |
Splicing kit | LSXXXXSPJLA | 120° splicing strip | - | Silver | |
Splicing kit | LSXXXXSPJT | Connector+screw | 45*9.3*2.0mm | Silver | |
Splicing kit | LSXXXXSPJLA | Connector+screw | - | Silver | |
Splicing kit | LSXXXXSPJLA | Connector+screw | - | Silver | |
Wire protection | LSXXXXHXB | PWB:3X4mm | - | - |
