Free Line Series 3.0 LS5270S-III-U

未标题-1
W
未标题-e
Product details

Information

  • Profile

  • End cap

  • Power supply

  • Heat sink

  • Lighting source

  • Reflective paper

  • Anti-dazzle grille

  • Pendant

Heated structure

Temperature (solid) (° C)

exterior view 1 : contour line

Temper ature ambient:25°C

36W/m test


Downloads

Products

Order Guide
NameOrder codeDiscriptionSize

Color

LS5270S-III-U kitLS5270S-III-U001

Profile+heat sink+cover

52*70*2500mmsilver/black/whit(ral9016)        image.png
ProfileLS5270S-III-UPROAL 6063-T52500mmsilver/black/whit(ral9016)         image.png
Heat sink

LS5270S-III-UHSK

AL 6063-TS2500mmsilve/b1ack/White(ral9016)      image.png
Anti-glare film

LS5270S-III-UAGF

Anti-glare film

LS5270S-III-UAIM

Aluminum 6063-T52500mm-image.png

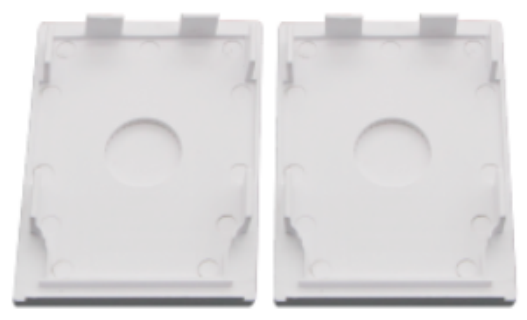

END CAP

LS5270S-III-U002APC52*70mmsilver/black/white (ral9016)             image.png


Magnet End Cap


LS5270S-III-U002BPC52*70mmsilver/black/white (ral9016)image.pngimage.png          image.png

Magnet

LS5270S-III-U002B


magnet


-


silver


  image.pngimage.png    image.png

Magnetic endcap clip

LS5270S-III-U002B

201 stainless steel-silver/black/white (ral9016)    image.png

PCB

NJG-499-12C10B-2

Lumen:3000LM

P: 36W/m,Ra>80

Width: 23mm


White



Terminal box

LSXXXXSJXHAnti-fire PC

80*80*38mm

Silver     image.pngimage.png         image.png
Pendant kitl.SXXXXSDZJSteel wire、CDpper2000mmsilver         image.png
Pendant kitl.SXXXXSDZJ-01Steel wire、Opper2000mmsilver    image.png
Tenninal boxLSXXXXSJXH-01IronΦ130mm*H38mmsilver/black/white (ral9016)       image.png
Tenninal boxl.SXXXXSJXH-02IronΦ130mm*H38mmsilver/black/white (ral9016)       image.png
Tenninal boxl.SXXXXSJXH-03IronΦ130mm*H38mmsilver/black/white (ral9016)        image.png

Embed buckle

LSXXXXSNQB

Stainless steel

         -

Silver    image.pngimage.png image.png

Surface mounted clip

LSXXXXSPJBM

Stainless steel

     -

    unpainted stainless steelimage.pngimage.png  image.png

Wire protection

LSXXXXHXB

PWB:3X4mm

     -

     -       image.png
